Midnight

Phaser

Analog phaser with tap and ramp capability.

Analog design, digital control.
JFET-based phaser.
Built for the explorer.

Purchase

Story of Midnight

The Midnight is a tribute to my Blackfeet (Amsskaapi Piikuni) heritage and dedication to my father who passed in 2017.
As midnight marks the end of one day and the beginning of another, the passing of a loved also marks a period of transition.
The Midnight features a teepee that was used by the Blackfeet and other nomadic tribes for its protection and mobility.
Like the teepee, the memories of our loved ones remain to protect us as we continue our journey.
-Mike Trombley, Founder

Item 1 of 4

Details

Midnight

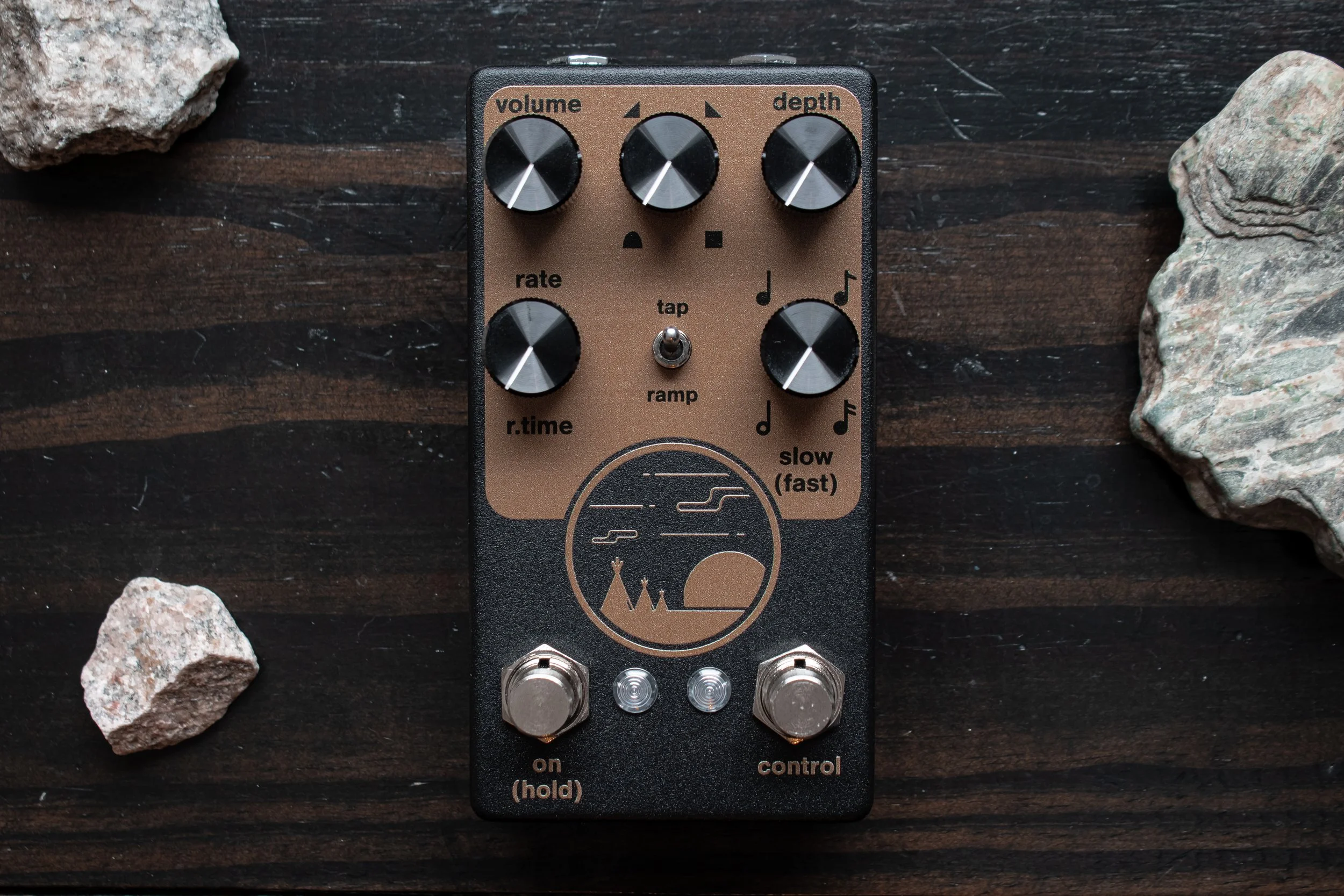

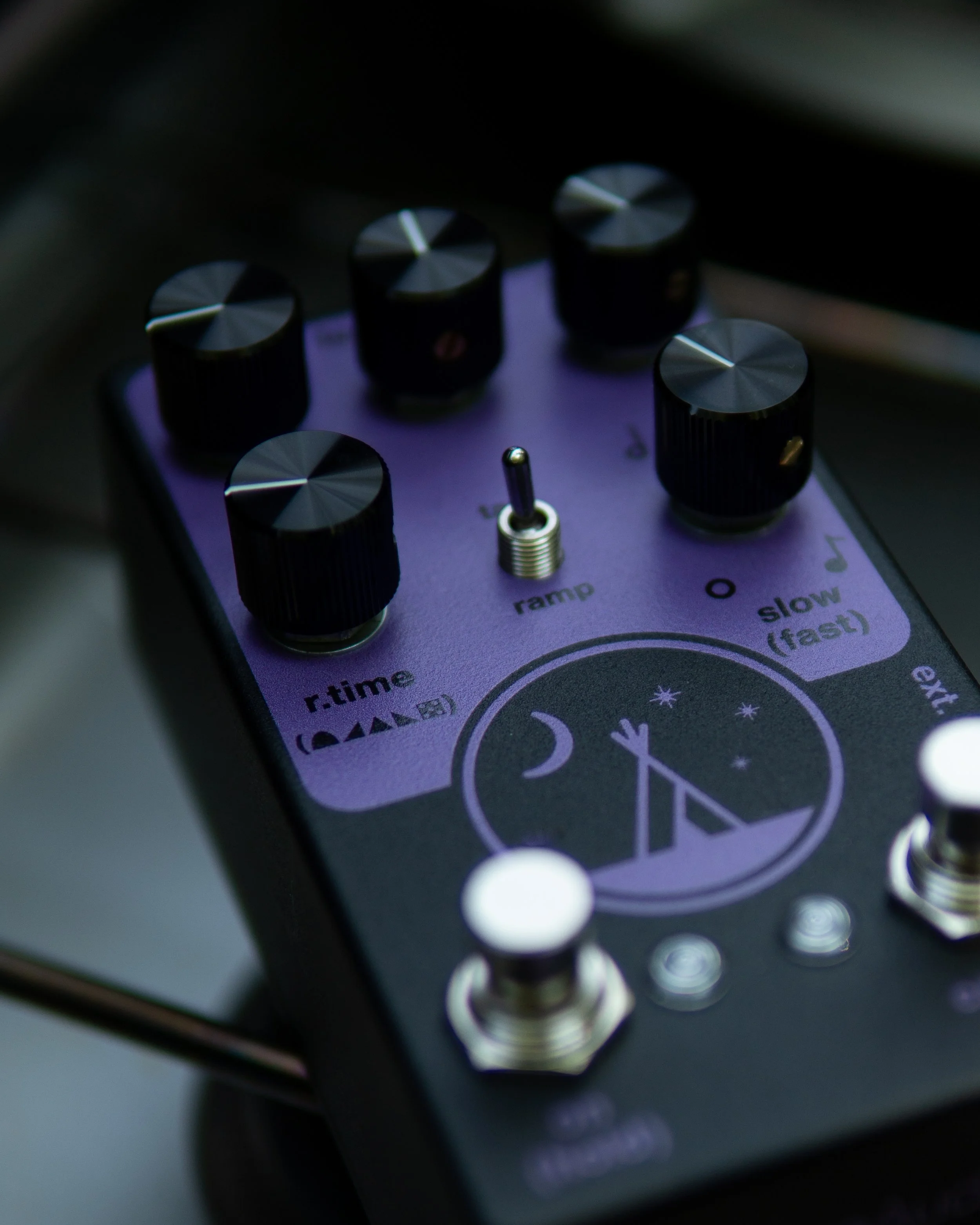

The Midnight is a JFET-based phaser pedal that expands on traditional analog phaser design.
The intuitive user-interface includes mix, feedback, and depth controls to create a warm, analog phaser experience. The Midnight uses digital controls to offer five global waveforms for both tap and ramp modes.
Tap mode offers tap tempo functionality with four subdivisions. Ramp mode allows the user to set slow and fast phasing speeds and accelerate between the two, emulating a classic rotary speaker cabinet.
Continue →
Features

● Analog JFET-based phaser with handpicked transistors that provide vintage phaser sounds.
● Intuitive interface with mix, feedback, depth, and mode controls for custom phaser tones.
● Tap mode with multiple sub-divisions to sync the phaser speed to the tempo of your song.
● Ramp mode alternates between two selectable phase speeds, creating endless phaser options.
● Smart switching system that provides standard on/off latching and momentary operation.
● Top-mounted instrument and power jacks to save pedal board space.
● Buffered-bypass design to optimize signal integrity with any instrument cable length.
Continue →
Specifications

Version
2.0.
Circuit Design
Analog.
Output Audio
Mono.
Bypass Switching
Buffered bypass.
Switching Methods
Momentary or latching.
Power Supply
9VDC - 50mA (2.1mm - center negative).
Dimensions
2.6''x4.77'' (W x L).

Item 1 of 3

Controls and Operations

Waveforms

Controls

Mix
Controls the overall mix of the signal.
Feedback
Controls the amount of signal fed back into the phaser.
Depth
Controls the depth of the phasing.
Tap and Ramp
Selects the mode of operation.
Continue →
Tap Mode Operations

Rate
Controls the rate of the phaser.
Divisions
Sets the tap tempo to one of the following divisions:
Whole, half, quarter, and eighth.
Control Switch
Sets the tempo.
Continue →
Ramp Mode Operations
R.Time
Controls the amount of time to ramp between the slow and fast rate.
Slow (Fast)
Adjusts the slow and fast rate.
Changing the Slow and Fast Rates
1. Rotate the slow (fast) knob to adjust slow rate.
2. Hold on (hold) and rotate the slow (fast) knob to adjust fast rate.
Control Switch
Hold control to adjust the rate of the phaser from slow to fast. Release control to return the rate back to slow.
Continue →
Waveform Operation
Changing the Waveform
1. Hold on (hold).
2. Rotate the (waveform) knob to desired waveform.
3. Release on (hold) to finalize selection.
Continue →
On (Hold) Operations
On (Hold) Switch
Turns the effect on and off or when the effect is on, hold on (hold) to access (waveforms) and fast.
Latching Operation
1. Press and release on (hold) quickly to toggle the effect on and off.
2. When the effect is on, hold on (hold) to access (waveforms).
Momentary Operation
1. Hold on (hold) when effect is off to temporarily turn the effect on and release on (hold) to turn the effect off.
