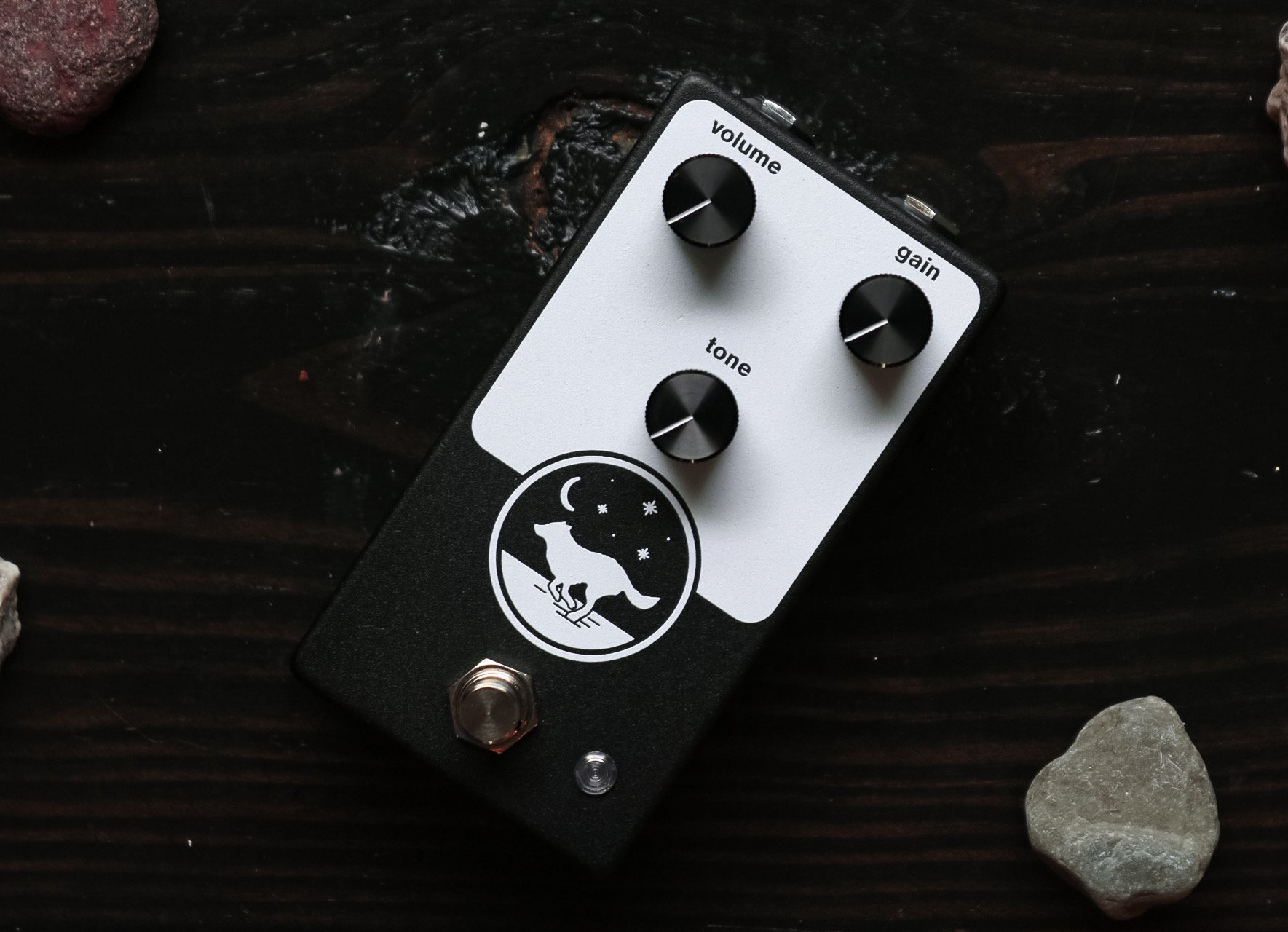

The Makoyii is an amp-like overdrive/distortion with adaptable compression to deliver sustained cleans, tight crunch, and woolly distortion. The streamlined interface includes volume, gain, and tone controls for maximum versatility in any overdrive/distortion application. The Makoyii’s unique gain structure provides an all-in-one solution blurring the lines between compression, overdrive, distortion, and fuzz.

Continue →

● Integrated compression and gain circuitry for expanded tonal capabilities.

● Unique gain structure providing compression, overdrive, distortion, and fuzz.

● Asymmetrical clipping that is tuned to provide a dynamic tube-like response.

● Intuitive interface with volume, gain, and tone controls for total customization of overdrive/distortion tones.

● 9-18VDC operation provides adjustable headroom for additional overdrive/distortion capabilities.

● Smart switching system that provides standard on/off latching and momentary operation.

● Top-mounted instrument and power jacks to save pedal board space

● Buffered-bypass design to optimize signal integrity with any instrument cable length.

Continue →

Version

1.0.

Circuit Design

Analog.

Output Audio

Mono.

Bypass Switching

Buffered bypass.

Switching Methods

Momentary or latching.

Power Supply

9-18VDC - 22mA (2.1mm - center negative).

Dimensions

2.6''x4.77'' (W x L).

Volume

Controls the overall volume of the signal.

Gain

Controls the amount of saturation.

Tone

Controls the amount of highs introduced to the signal.

Bypass Switch

Turns the effect on and off.

Bypass Switch - Latch Operation

Press and release switch quickly to toggle the effect on and off.

Bypass Switch - Momentary Operation

Hold switch when effect is off to temporarily turn the effect on and release switch to turn the effect off.
